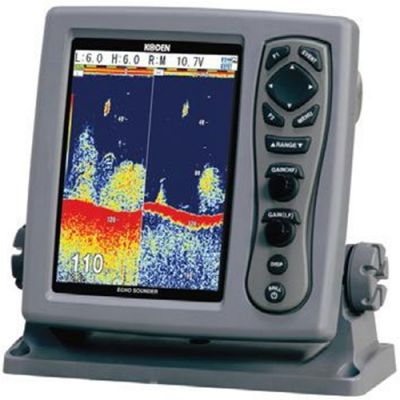

Echosonda CVS-128

Display 8.4" TFT Color LCD (640 x 480 pixels)
Display Colors 8, 16, 64 or monochrome
Power Requirements 10.8 ~31.2V DC.
Power Consumption 25w or less at 12V DC
Operating Frequency Dual Frequency 50/200 kHz
Output Power 600W/1000W
Background Colors Blue, dark blue, black, white, nighttime and 5 other colors
Display Mode High frequency, Low frequency, Dual frequency, Zoom image, Nav mode, A-Scope (can be added all above modes), left and right divided
Zoom Modes Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Sea Bottom, Partial zoom
Depth Ranges* 8 ranges from 10 to 3600'
Zoom Ranges 10 to 650' (23 steps)
Audible Alarm Fish, bottom, depth, temperature**, speed ***, arrival****, XTE****
Image Speed 9 levels plus stop
Image shift Auto or Manual (0 to 1000')
Auto Functions Depth range, Shift and Gain
Languages English, Spanish, French, Greek, Italian, Japanese, Korean, Chinese, Thai
Distance Unit ft, m, fm, 1, FM
Input Format NMEA0183 (GGA, GLL, ZDA, VTG, RMC, MTW, VHW, MWV, HDT)
Output Format NMEA0183 (DBT, DPT, GGA, GLL, MTW, RMC, TLL, VHW, VTG, ZDA, HDT, MWV)
Other Functions Interference rejection, Color rejection, Depth marker (VRM), Event Memory, Panel illumination, Draft adjustment, Temperature correct, Boat speed correct, White line, Sona-Tone, Power reduction, Built-in simulator, Noise rejection, Simple Plotter
Waterproof Rating IPX 5
Operating Temperature 5° to 131°F (-15° to +55°C)
