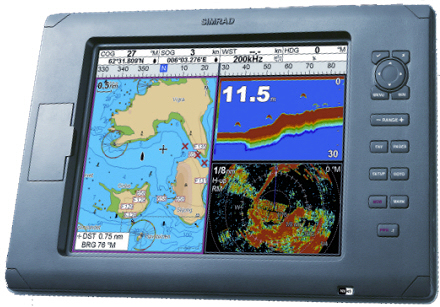

NX-40

Features & Specifications:
Built-in Chartplotter
Built-in Fishfinder
32MB of chart data
Radar and SimNet interface
Display Size 213 mm \ 8.4 in
Display Resolution 800x600 (H x W)
Display Type TFT color Backlighting Type Display and keys
Sonar Frequency 50kHz / 200kHz kHz
Sonar Output Power Max Up to 600W / 1kW (Auto detects transducers max power) W
Sonar Depth Max 3300 m \ 10800 ft
Waypoint Identity 8
Width 285 mm \ 11.2 in
Height 190 mm \ 7.5 in
Depth 75 mm \ 3 in
Power Consumption 350mA without backlight, Max 1A with full backlight
Chart System C-MAP™ SD Card (NT, NT+ or NT MAX) 2 SD slots Data Card Yes
Environmental Rating IPx6 / IPx7/CFR46 (Chart holder and connectors in place)
External Alarm Yes
Operating Temperature 0 to 50 C (32 to 122 F)
